Product Attributes
WATCH THE VIDEO
Product attributes are product characteristics, for example color, size and style, that can be used to add product specifications, extend webshop search, and to filter webshop catalog using facets. Product attributes can be also used to add physical dimensions, like width, height or weight.
You can add product specifications to the product details page using the Product specifications content element.
Product attributes can be added to the product categories and inherited automatically by all products that belong to the category, and to each product individually.
There are different types of category hierarchies that you can create and use in Microsoft Dynamics AX to group and categorize products. In the table below you can see some of the most used categories in Microsoft Dynamics AX and you can see for which categories product attributes can be configured.
| Category hierarchy | 1 or more hierarchies per legal entity | Product attributes availability | Retail module |
|---|---|---|---|
| Item group | Not available | No | No |
| Sales category hierarchy | 1 | No | No |
| Procurement category hierarchy | 1 | Yes | No |
| Commerce product hierarchy | 1 | Yes | Yes |
| Retail channel navigation category hierarchy | Multiple | Yes | Yes |
| Supplemental retail hierarchy | Multiple | Yes | Yes |
Using retail categories may require a valid retail license. To ensure compliance and avoid potential issues, we strongly recommend consulting with your ERP partner to determine whether a retail license is necessary for your specific use case.
In the sections below, we will explain how to set up and assign product attributes to a category, using the procurement category hierarchy as an example.
Assign Category Hierarchy to Your Webshop
If you want to use category hierarchy with attributes, you need to assign this category hierarchy to your webshop.

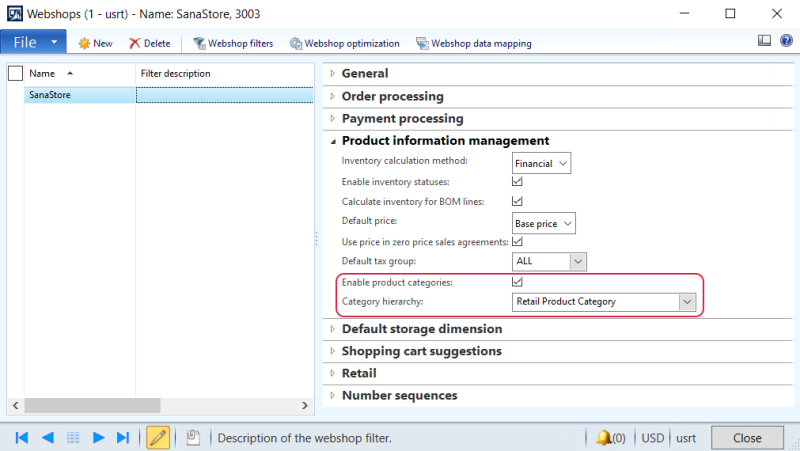

In Microsoft Dynamics AX click: Webshop > Common > Webshops. On the Product information management FastTab, enable product categories and select the category hierarchy.
Assign Product Attributes to the Procurement Category Hierarchy in Microsoft Dynamics AX
The Procurement category hierarchy should be already created. In Microsoft Dynamics AX it is possible to create only one product category of the Procurement category hierarchy type per legal entity. For more information, see Product Categories.

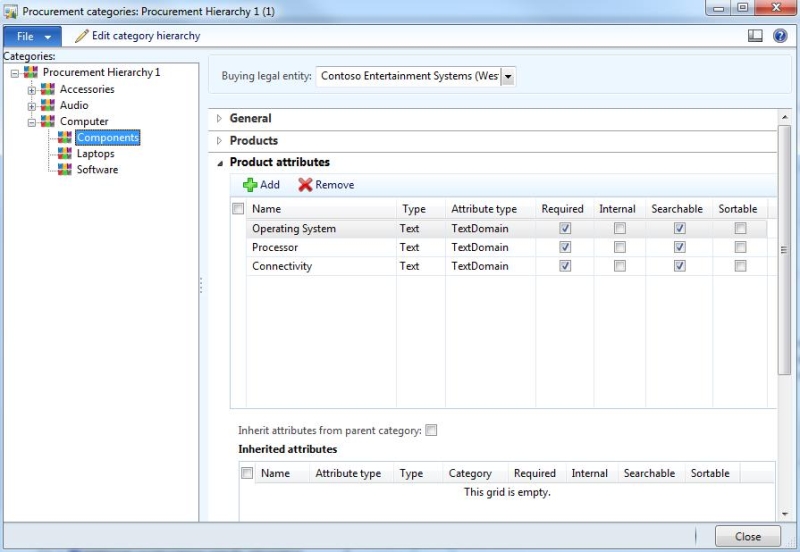

Step 1: Click: Procurement and sourcing > Setup > Categories > Procurement categories.
Step 2: Use this form to assign product attributes to the procurement product category on the Product attributes FastTab. Click Add to assign any product attribute.
You can add product attributes at a parent category level and then require subcategories to inherit all product attributes from the parent category. You can also manage the product attributes for each subcategory individually.
Product attributes added to a category will be used for all products that belong to this category.

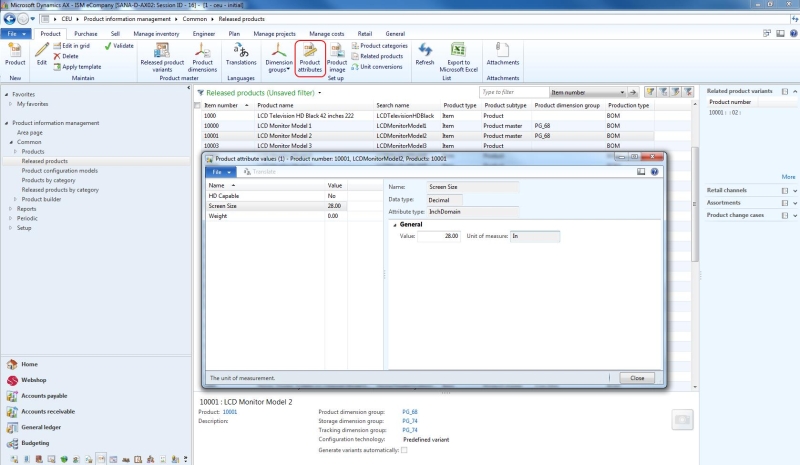

You can change the default product attribute value per product. Select the necessary released product and click Product attributes on the action pane. Use the Product attribute values form to set the product attribute values per each product.
Applies to: Sana Commerce Cloud 10.0.70 and higher in Microsoft Dynamics AX.
When the user in Microsoft Dynamics AX changes the value of an attribute added to a product, the last modified date of the product will be updated. Changing attribute values of the products does not require rebuilding the full product index, only updating it.
If product attribute values are of the text type, you can translate them into different languages. If your web store is multi-lingual, product attributes from Microsoft Dynamics AX will be shown in the selected language.
Manage the List of Product Attributes That Can Be Assigned to the Procurement Category Hierarchy
Step 1: Click Product information management > Setup > Attributes > Attribute types. Use this form to define the attribute types and default values that you can select when you define attributes for products and categories in the Attributes form. Attribute types can be translated into different languages. Use Translate to translate attribute types.
Step 2: Click Product information management > Setup > Attributes > Attributes. Use this form to manage the list of available attributes as well as translate the attributes names into any language.

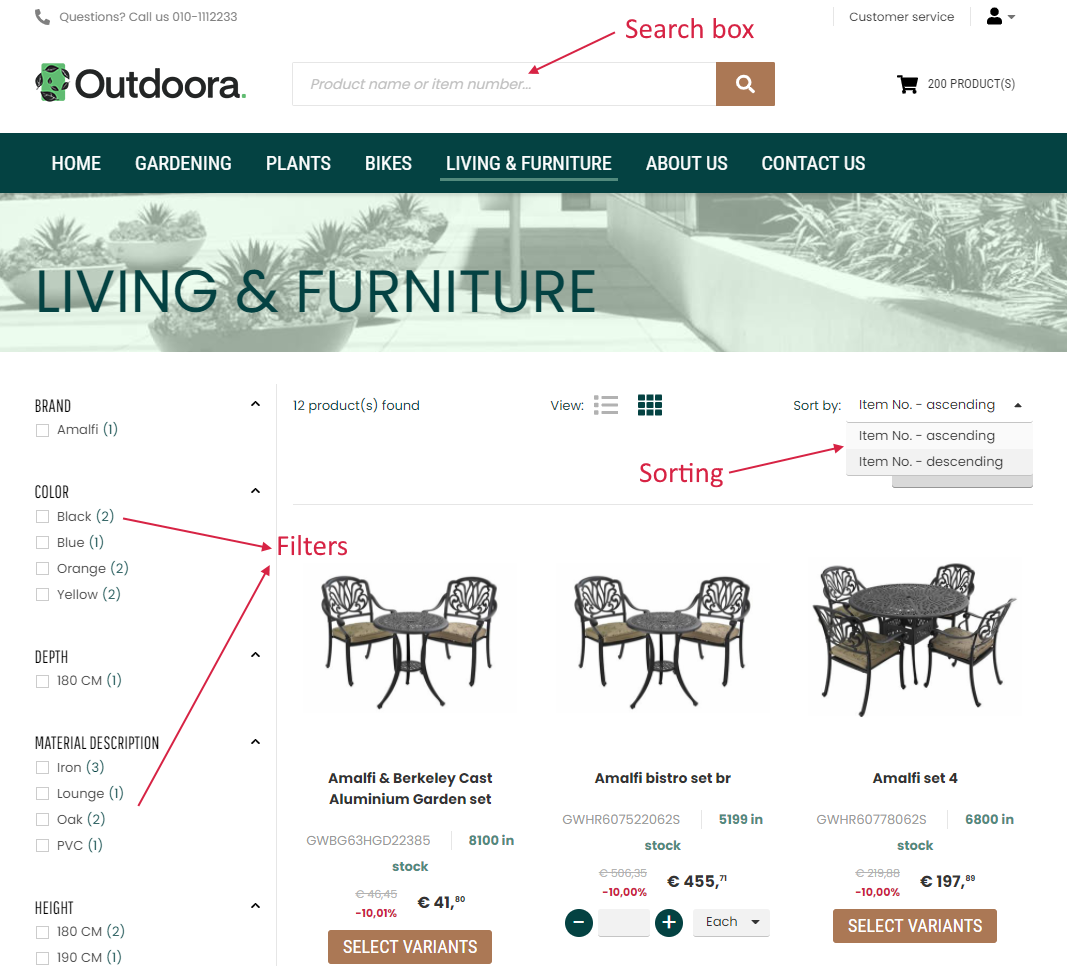

When product attributes and values are set for the procurement category hierarchy and products, you can open Sana Admin, click: Setup > Search & filters, and extend your webshop search capabilities with product attributes by adding them to the filter and keyword fields.
In the Field name dropdown of the keyword and filter fields, you can see the fields with the [Attribute] tag that corresponds to the product attributes set in Microsoft Dynamics AX.

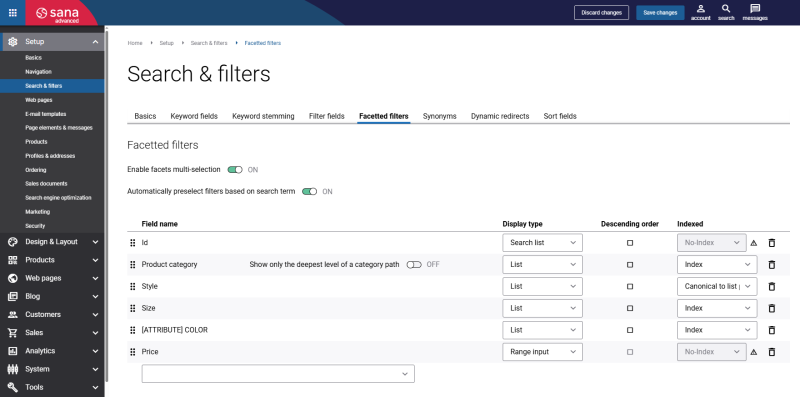

You can also use these fields for filtering of products in the webshop using facets. In Sana Admin click: Setup > Search & filters > Facetted filters.
For information about search settings, see Webstore Search and Product Filtering.

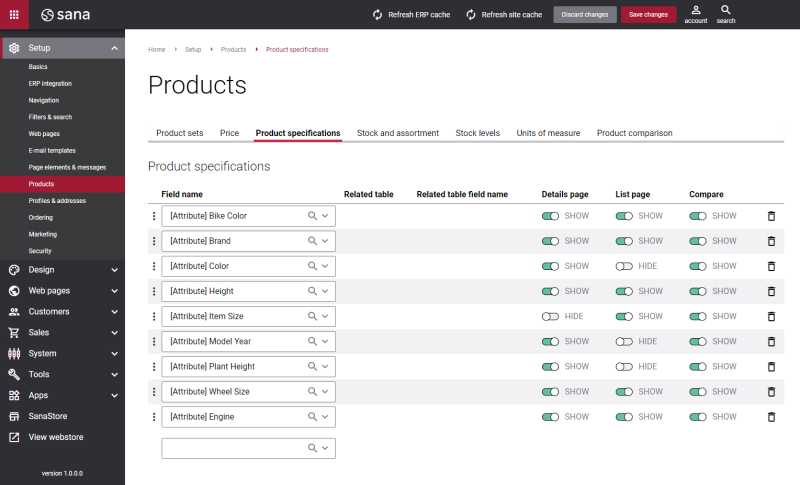

Product attributes from Microsoft Dynamics AX can be used not only to extend your webshop search capabilities, but also for product specifications configuration in Sana Admin: Setup > Products > Product specifications.
For more information about product attributes in the Sana Admin, see Product Specifications.
